Items marked (available to demo) are available in our store for audition. Please give us a call or email in advance for an appointment.
- ADD A DAC BOARD AN ADDITIONAL $300.
- ADD A PHONO P50 for MM Cartridge FOR $130.
- ADD A PHONO P100 for MM or MC Cartridge FOR $190.
CALL TO ORDER OPTIONAL BOARDS

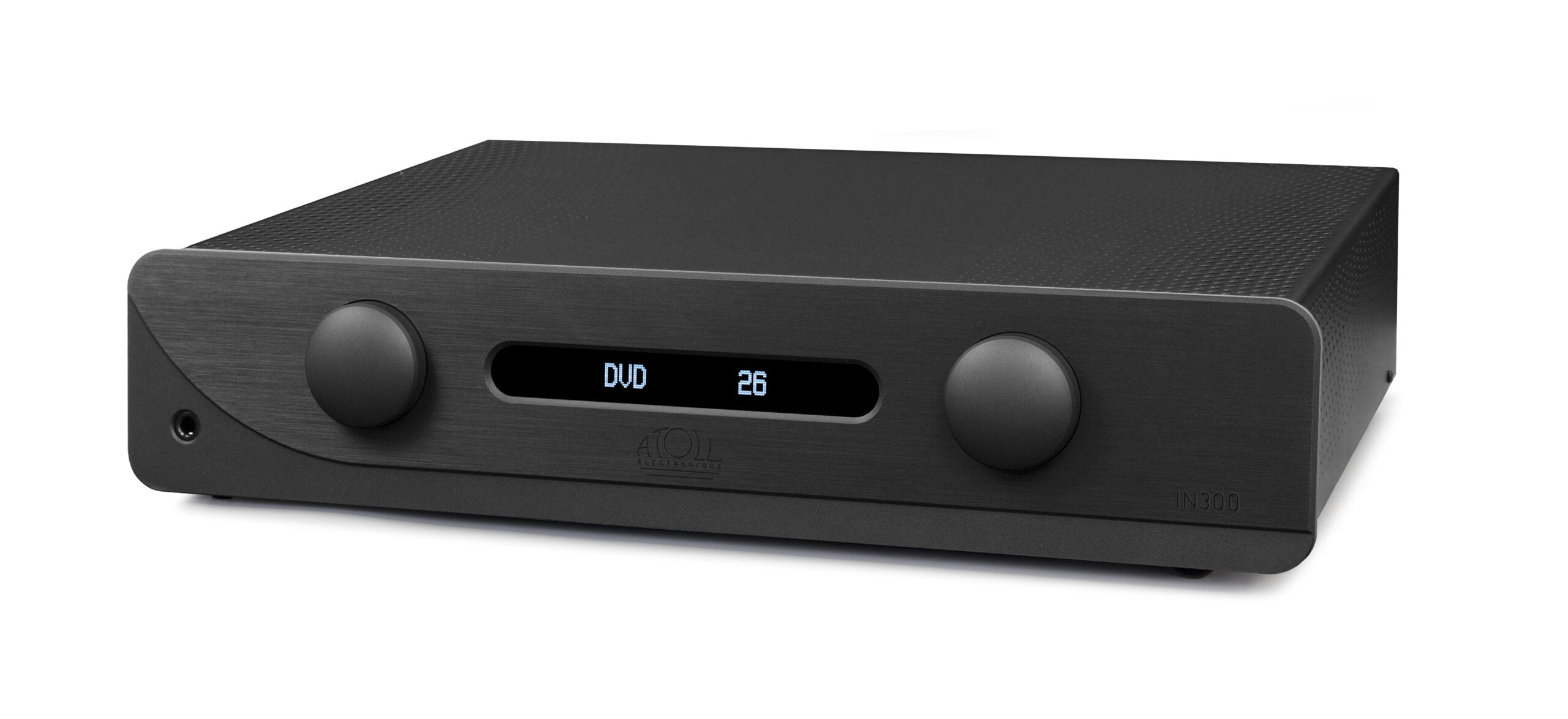

IN300 Evolution
The IN300 Evolution integrated amplifier features reworked power supplies, improved audio performance, and a low-power mode. DAC boards are now optional.
- 8 mm brushed, micro-blasted and anodised aluminium front panel, high-precision engraving.
- 2×150 Wrms / 8Ω.
- 2 mm steel chassis.
- 2 x 440 VA toroidal transformers for the audio stages
plus 10 VA for the digital stages. - Soft start stage to avoid consumption peaks.
- High-end ABSOLUE CREATIONS cable on the mains part.
- Filter capacitors: 12×6800 μF high-quality, with low ESR specific for ATOLL.
- High-quality and shielded MKP link capacitors.
- Current sources with bipolar transistors and LEDs to ensure perfect voltage stability.
- Triple push-pull MOS-FET power stage.
- Polarisation of the output stages in class A/B.
- Possibility of choosing standby mode: Low consumption or preheating.
- 2 volume attenuators: 1 per channel to maintain the dual mono architecture.
- Possibility to manage balance and memorise it.
- Possibility to rename the inputs.
- High contrast OLED display (on or off mode after 5 seconds of inactivity).
- Double-sided printed circuits with nickel/gold finish.
- ATOLL global remote control supplied as standard.
- The IN300 EVO can receive the following optional boards:
– DAC boards: DA100 and DA200.
– PHONO boards: P50 and P100 (can be combined with DAC boards).
Our balanced MOS-FET amplifier circuits offer excellent harmonic gradients and have no memory effect. Every moment, the current is immediately delivered to your speakers. This is one of the secrets of the musicality that ATOLL amplifiers enjoy.
TECHNICAL DATA
Power in Wrms/channel/8Ω (230v): 150 W
Power in Wrms/channel/4Ω (230v): 260 W
Power supply: 2×440 VA + 10 VA
Total of capacitors: 86 150 µF
Number of inputs: 5+1 BY-PASS
Consumption with switch off: 0 W
Consumption in standby (low consumption): <0.5 W
Consumption in preheating mode: 27 W
Consumption in operation: 29 W – 700 W
Input impedance: 220 kΩ
Maximum input level:
3.5 Vrms / 4.7 Vrms XLR
Sensitivity: 450 mV
Signal/noise ratio: 100 dB
Distortion at 1 kHz: 0.05% / (10 W)
Bandwidth: 5 Hz – 100 kHz
Rise time: 2.0 µs
Dimensions: 440×365×103 mm
Weight: 16 Kg
