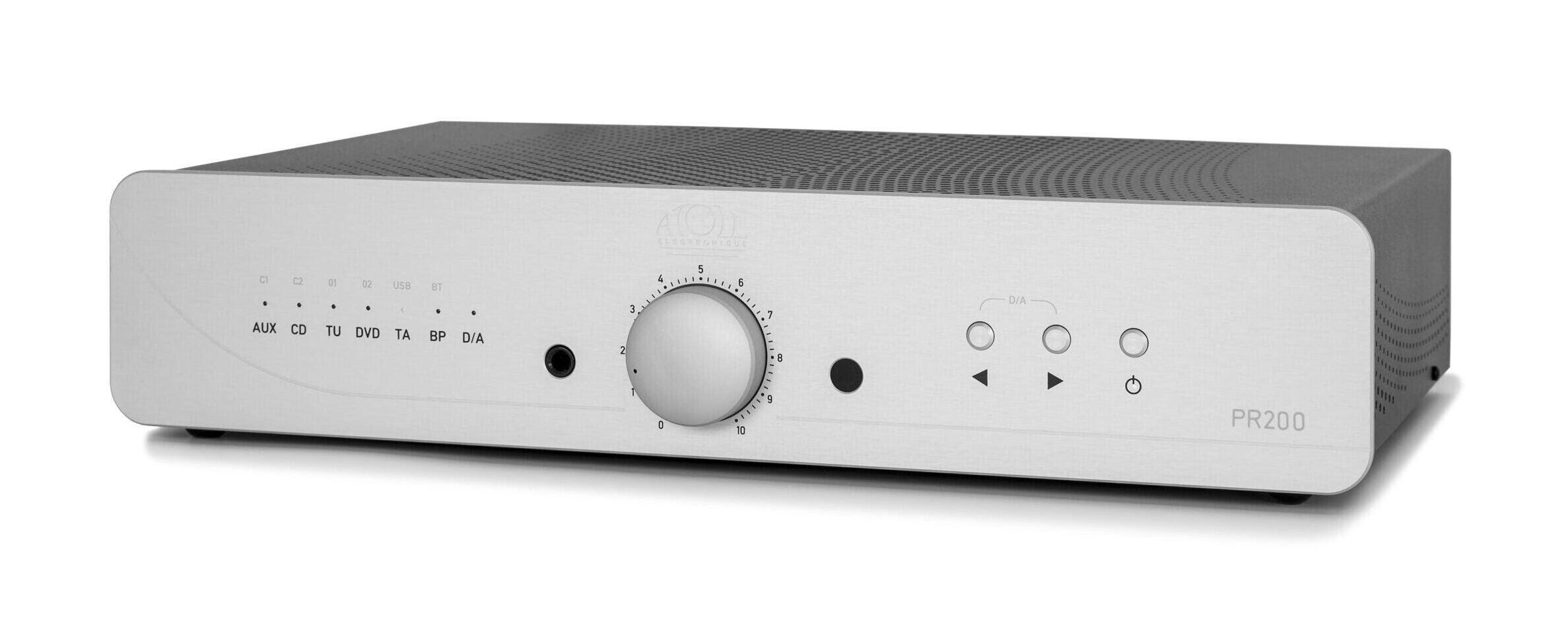

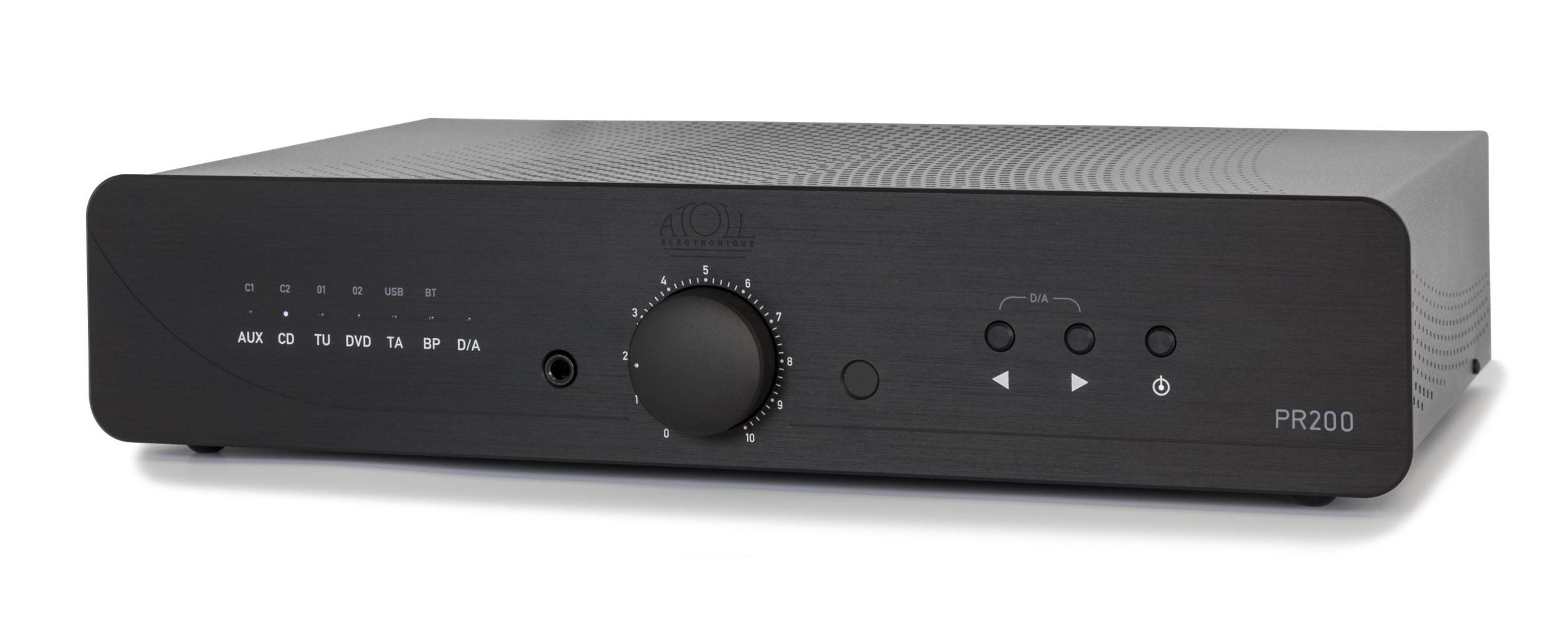

PR200 Signature
The PR200 Signature is part of ATOLL’s range of preamplifiers and power amplifiers. This preamplifier represents the modularity and power ATOLL wants to promote: a wide range of combinations and a considerable source of improvements.
- 4 mm brushed aluminium front.
- 340 VA toroidal transformer.
- ALPS motorized potentiometer.
- Total of capacitors: 31 918 µF.
- Monitoring loop.
- Balanced discrete component audio stages.
- MKP Technology Link Capacitors.
- Double-sided circuit boards with nickel/gold finish.
- BY-PASS input.
- 2 analogue preamp outputs.
- 12V Trigger output.
- ATOLL global remote control.
- The PR200 Signature can receive the following optional boards:
– DAC boards: DA100 and DA200.
– PHONO boards: P50 and P100 (can be combined with DAC boards).
TECHNICAL DATA
Power supply: 340 VA
Total of capacitors: 31 918 µF
Number of inputs: 5+1 BY-PASS
Bandwidth: 5 Hz – 200 kHz
Rising time: 1,3 µs
Input impedance: 220 kΩ
Sensitivity: 500 mV
Signal/Noise ratio: 100 dBA
Distortion at 1 kHz: 0,005%
Dimensions: 440×300×95 mm
Weight: 8 Kg
