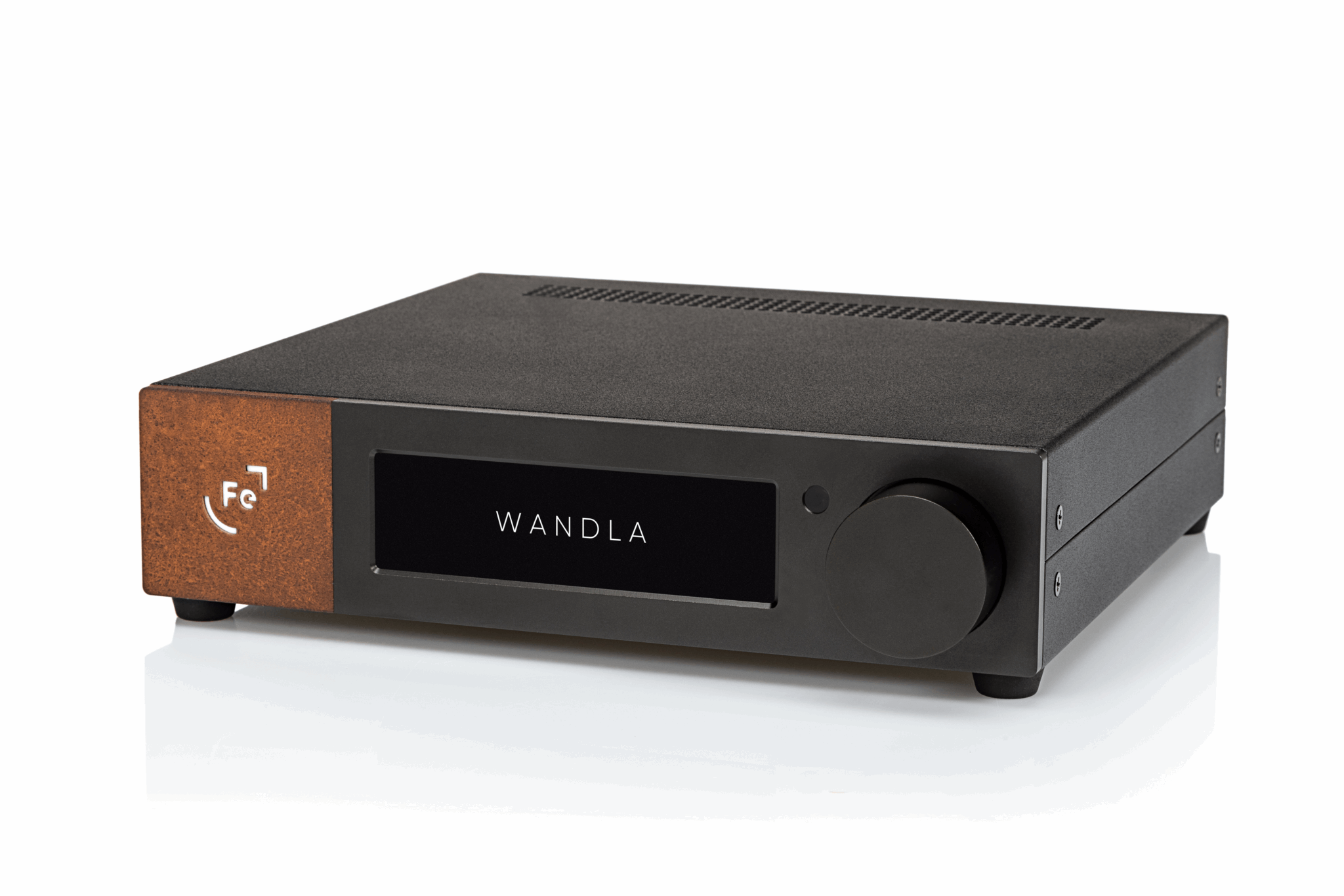

Representing a major firmware update to the award-winning WANDLA DAC, WANDLA 2.0 implements Ferrum Streaming Control Technology (FSCT) - a series of innovations developed during the design of Ferrum upcoming streamer.Any Wandla, including GoldenSound Edition and Wandla HP, may be updated to 2.0 for free!
Updates to the Original
WANDLA 2.0 now controls playback and displays real-time track data. Volume control, playback and transport of your source can now be controlled with WANDLA 2.0's touchscreen or remote and "Now playing" metadata and progress bar are displayed on the screen. Built on standard USB Audio Class protocols, WANDLA 2.0 works with ANY compliant brand of computer or streamer
Ferrum Streaming Control Technology (FSCT) Makes Its Debut
FSCT currently works with Windows and macOS computers as well as Volumio-based streamers, with broader compatibility planned. The FSCT host software is open-source and available on GitHub for any streamer or DAC manufacturer to adopt.
Features
DAC Chip
ESS Sabre ES9038PRO
DAC Resolution
768 kHz/32-bit, DSD 512
MQA®
decoder and renderer (on all digital inputs)
Digital Inputs
USB (up to PCM 768 kHz/32-bit, DSD 512, DoP 256), I2S (up to PCM 768 kHz/32-bit, DSD 512, DoP 256) PS Audio® compatible, ARC (up to PCM 192 kHz/24-bit) TV input with CEC, AES/EBU (up to PCM 192 kHz/24-bit, DoP 64), Optical S/PDIF (up to PCM 96 kHz/24-bit guaranteed; should work up to PCM 192 kHz/24-bit and DoP 64 – depends of user’s optical cable and transmitter), Coaxial S/PDIF (up to PCM 192 kHz/24-bit, DoP 64)
Analogue Inputs
RCA
Analogue Input Vmax / Impedance
9.5 VRMS (2–3.5 VRMS recommended) / 47 kΩ
Line outputs
balanced XLR; unbalanced RCA
Volume control
analogue with bypass option / digital for DAC operation only
Specs (Continued)
Output level
@0 dBFS, 1 kHz sine 10 VRMS balanced, 5 VRMS unbalanced
Frequency response
10 Hz – 200 kHz +/- 0.1 dB
THD (DAC / Analog Input)
-121 dB (0,00009%); THD+N: -115 dB (unweighted) / -123 dB @ 2 VRMS output level
Dynamic Range (Analog / Digital)
127 dB (A-weighted) / 127 dB (A-weighted)
Crosstalk
-120 dB for 1 kHz, better than -100 dB for 20 Hz -20 kHz
Output impedance (Unbalanced / Balanced)
22 Ω / 44 Ω
Power consumption
10 W idle / 15 W max
Power inputs
22-30 VDC, proprietary FPL 4-pin DC connector (FPL), 5.5/2.5 mm DC connector centre positive
Power adapter
100-240 VAC to 24 VDC
Dimensions
21.7 cm x 20.6 cm x 5 cm
Weight
1.8kg
